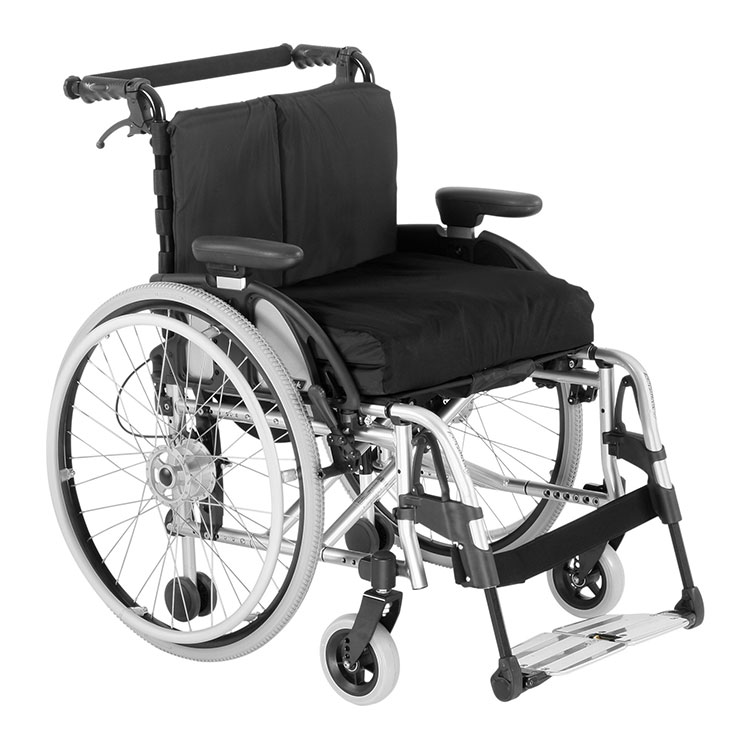

Ottobock Motus CV Wheelchair

The name Motus comes from the word “moveo” and describes everything about movement. In addition to the two familiar variants CS and CV, the new Motus family also includes so-called indication related models. The Motus XXL with its reinforced components is suitable for users weighing up to 140 kg. The HEMI variant, on the other hand, was especially designed for the care of patients with hemiplegia. The challenge here is that both the individual (residual) abilities and support needs must always be taken into account e.g. mobility of a leg should be used, paralysed body parts should be supported.

Features:

• Vehicle friendly – the Motus folds up easily and quickly for transport
• Wheelchair is individually adjustable
• Adjustable back support included as standard
• Aluminium frame
• Colour selection: Grey, Black, Orange, Blue, Green, White

Technical Specifications:
Motus CV:

• User Weight Capacity: 125 kg
• Seat Width: 355mm – 480mm
• Seat Height – Front: 380mm – 550mm
• Seat Height – Rear: 360mm – 520mm
• Seat Depth: 360mm – 540mm
• Seat Inclination: 10mm – 100mm
• Back Angle: 0 degrees – 30 degrees
• Overall Length: 805mm – 1155mm
• Overall Width: 505mm – 680mm
• Overall Height: 670mm – 1100mm
• Folding Size: 270mm – 330mm
• Lower Leg Length: 340mm – 550mm
• Total Weight: 11.9 – 20.2 kg

Motus XXL:

• User Weight Capacity: 140 kg
• Seat Width: 505mm – 555mm
• Seat Height – Front: 380mm – 550mm
• Seat Height – Rear: 360mm – 520mm
• Seat Depth: 420mm – 540mm
• Seat Inclination: 10mm – 100mm
• Back Angle: 0 degrees – 30 degrees
• Overall Length: 865mm – 1155mm
• Overall Width: 655mm – 755mm
• Overall Height: 670mm – 1100mm
• Folding Size: 270mm 330mm
• Lower Leg Length: 340mm – 550mm
• Total Weight: 12.8 kg – 20.7 kg
