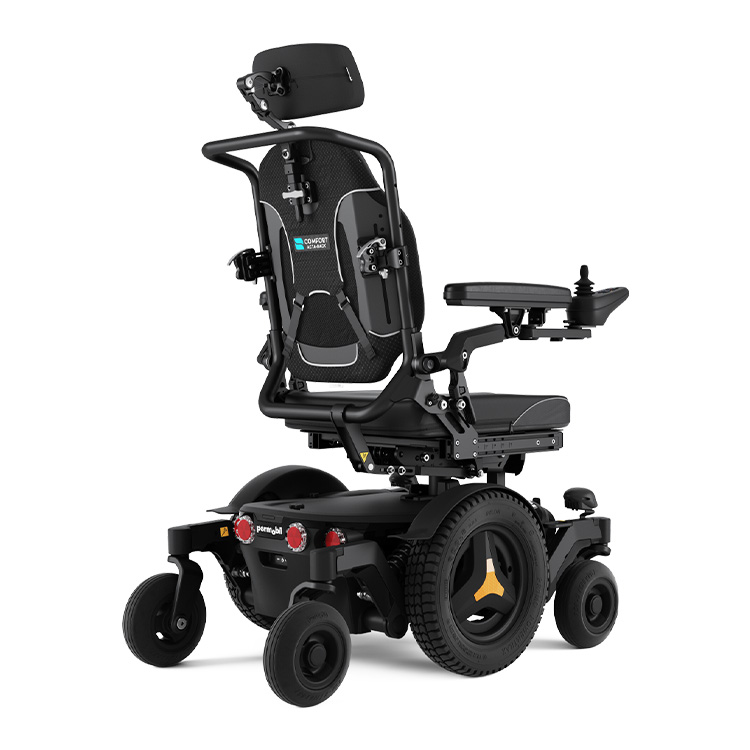

Permobil M1 Power Wheelchair

Finally, a true Permobil quality solution for those users who require a more traditional rehab style seating system with limited to no power seat functions. Designed with adaptable seating and positioning needs in mind, the M1 offers all the flexibility without the compromise. Unlike traditional, wobbly rehab arms, the M1 locking flip back armrests are durable and secure to withstand the rigours of daily repositioning and transfers. The centre mount and multi-angle adjustable swing-away leg rests are built to last with a full range of options to address your lower extremity positioning needs.

Features:

• 1” tubular frame compatible with virtually any seating
• Locking flip back arms with easy to release mechanism
• Swing in/out legs with two-function release
• 7” performance castor design + adjustment free flutter dampening
• Patented FlexLink™ suspension and precision engineered CasterGlide™ technology
• Crash tested transport brackets – ISO 7176-19:2008(E)
• Range of colour options

Technical Specifications:

• User Weight Capacity: 136 kg
• Maximum Speed: Up to 8 km/h
• Seat Width: 14” – 22” (by 1” increments)
• Seat Depth: 14” – 22” (by 2” increments)
• Range: Up to 25 km
• Base Width: 24”
• Base Length: 35.5”
• Turning Radius: 20.5”
• Ground Clearance: 3”
• Drive Electronics: R-Net 90A
• Seat to Floor Height: 16, 17”, 18”
• Armrest Pad Lengths: 2” x 10”, 2” x 14”, 4” x 10”, 4”x 18”
• Backrest Heights: 18” – 29” (by 1” increments)
• Tilt Options: 0 degrees – 50 degrees posterior
• Recline Options: 85 degrees – 110 degrees (manual)
• Wheel Configuration: Front wheel drive
• Weight Including Batteries: 145 kg
